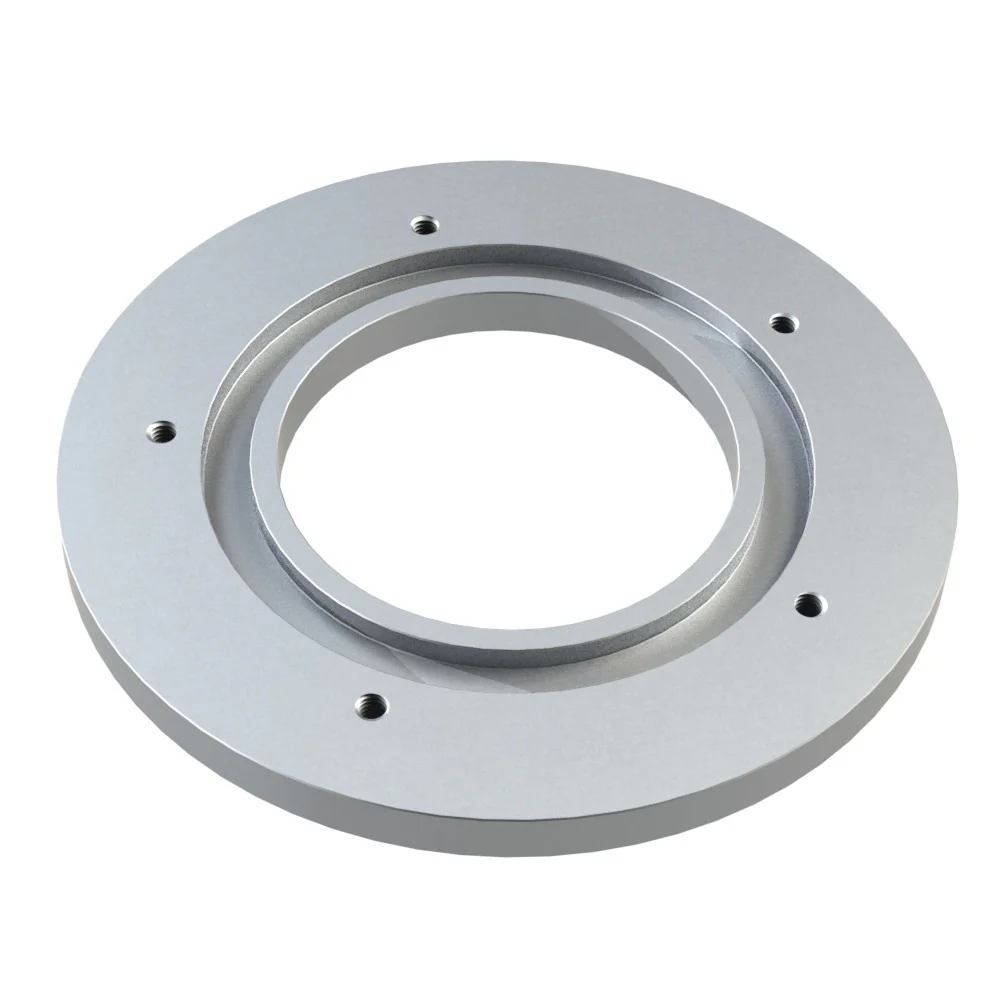

Suzuki GSXR Fuel Pump Flange
Weld-on flange to fit a Suzuki GSXR fuel pump to a custom aluminium fuel tank.
Five holes tapped to M6 threads on 96mm PCD. Note holes are spaced to suit GSXR fuel pump and are unevenly spaced.
Outside diameter: 124.5mm
Thickness: 8mm
Requires 70mm diameter hole in bottom of fuel tank. Fully weld flange to bottom of tank (inside and out). Do not drill the mounting holes through the tank.
Part no. GSXR-FLANGE
Original: $52.95
-70%$52.95
$15.88Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Weld-on flange to fit a Suzuki GSXR fuel pump to a custom aluminium fuel tank.
Five holes tapped to M6 threads on 96mm PCD. Note holes are spaced to suit GSXR fuel pump and are unevenly spaced.
Outside diameter: 124.5mm
Thickness: 8mm
Requires 70mm diameter hole in bottom of fuel tank. Fully weld flange to bottom of tank (inside and out). Do not drill the mounting holes through the tank.
Part no. GSXR-FLANGE
